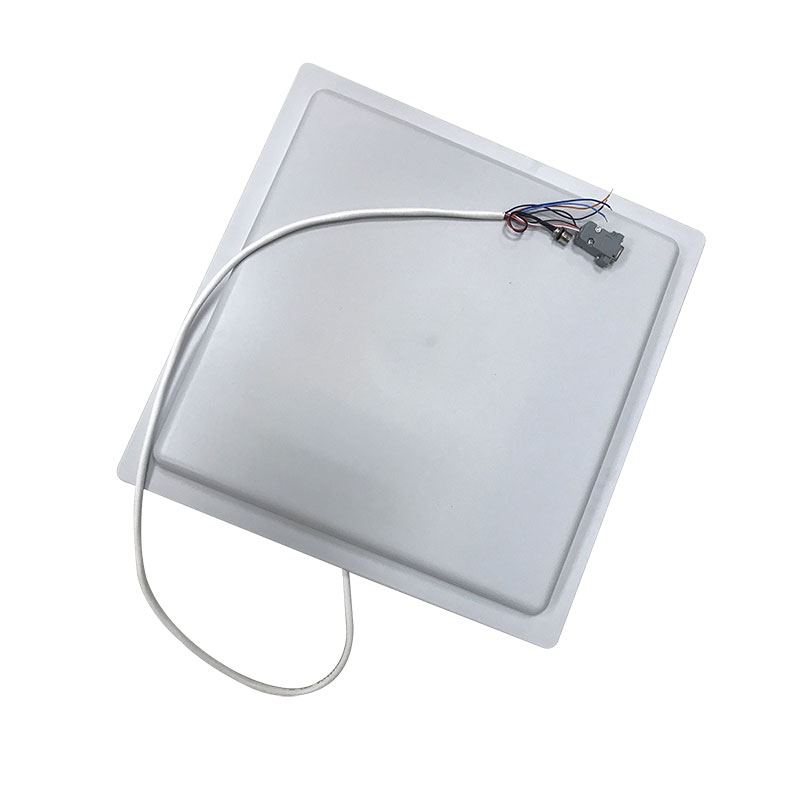

Waterproof Weigand UHF Door Access Control Reader Vehicle Uhf Rfid Card Reader

This UHF reader is waterproof weigand UHF door access control reader vehicle uhf rfid card reader.we are wholesale access card readers manufacturer and supplier in China,we have been manufacturing door access readers for many years.our uhf card reader has high quality,good price and we can provide you good service.we look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

Waterproof Weigand UHF Door Access Control Reader Vehicle Uhf Rfid Card Reader



1.Product Introduction

UHF rfid reader is a high performance uhf rfid integrated reader.it is designed upon fully self-intellectual property.based on proprietary efficient digital signal processing algorithm,it supports fast tag read/write operation with high identification rate.it can be widely applied in many RFID application systems such as logistics,access control,and anti-counterfeit and industrial production process control system.



2.Product Description

l  Self-intellectual property;

l  Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l  865~868MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

l  8dbi antenna optional with effect distance up to6m*;

l  Support auto-running, interactive and trigger-activating work mode;

l  Low power dissipation with single +9 DC power supply;

Support RS232, RS485, Wiegand26/34interface;

l  Provide DLL and Demonstration Software Source code to facilitate further development.



3.CHARACTERISTICS

l Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-20~+70

Storage Temp.

TSTR

-25~+80


l  Electrical and Mechanical Specification

Under TA=25℃,VCC=+9V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC



350

650

mA

Frequency

FREQ

865



868

MHz

Effective Distance

DIS

300

500

600

cm


INTERFACE

ITEM

COMMENT

Red

+9V

Black

GND

Yellow

Wiegand DATA0

Blue

Wiegand DATA1

Purple

RS485 R+

Orange

RS485 R-

Brown

GND

White

RS232 RXD

Green

RS232 TXD

Grey

Trigger input(TTL level)


* Effective distance depends on antenna, tag and environment.
