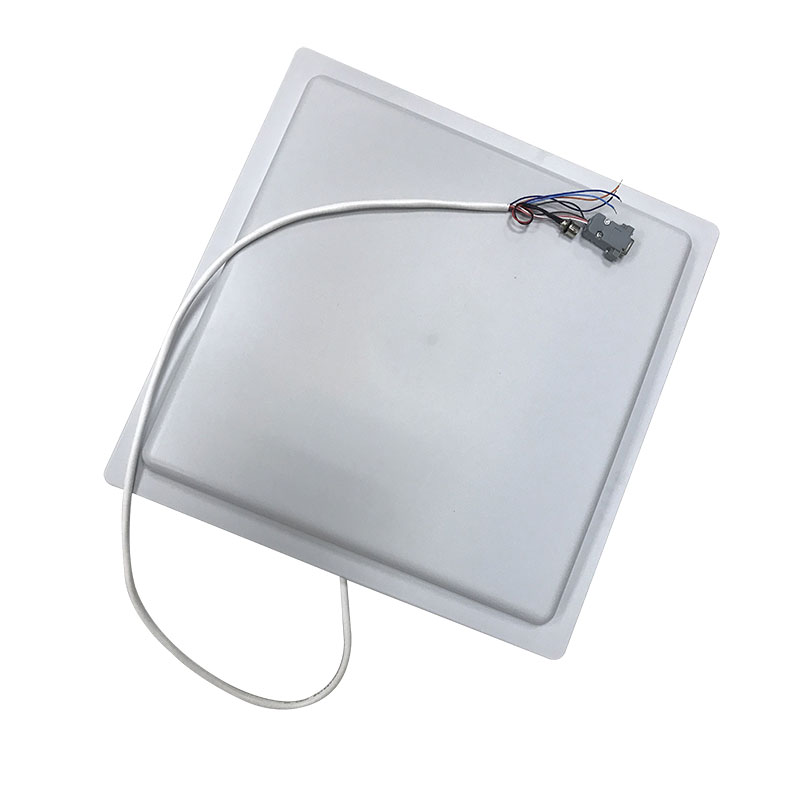

0-15M Reading Distance Long Range Uhf Rfid Smart Card Reader

0-15M Reading Distance Long Range Uhf Rfid Smart Card Reader

1.Product Introduction

Long range rfid card reader is a high performance uhf rfid integrated reader.it is designed upon fully self-intellectual property.based on proprietary efficient digital signal processing algorithm,it supports fast tag read/write operation with high identification rate.it can be widely applied in many RFID application systems such as logistics system,parking lot system,access control system,and anti-counterfeit and industrial production process control system.

2.Product Description

l  Self-intellectual property;

l  Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l  865~868MHz frequency band(frequency customization optional);

l  FHSS or Fix Frequency transmission;

l  RF output power up to 30dbm(adjustable);

l  8dbi antenna optional with effect distance up to6m*;

l  Support auto-running, interactive and trigger-activating work mode;

l  Low power dissipation with single +9 DC power supply;

l  Support RS232, RS485, Wiegand26/34interface;

l  Provide DLL and Demonstration Software Source code to facilitate further development.

l  Effective distance depends on antenna, tag and environment.

3.CHARACTERISTICS

l Absolute Maximum Rating

l  Electrical and Mechanical Specification

Under T＝25℃，VCC＝+9V unless specified

INTERFACE

*Optional model TCP with TCP/IP interface is also available.
