ACR122U 13.56Mhz Rfid Smart Reader NFC Card Tags Reader Writer

This nfc writer is acr122u 13.56mhz rfid smart reader NFC card tags reader writer.we are professional nfc writers manufacturer and supplier in China,we have been manufacturing nfc card writers for many years.our acr122u card writer has high quality,good price and we can provide you good service.we look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

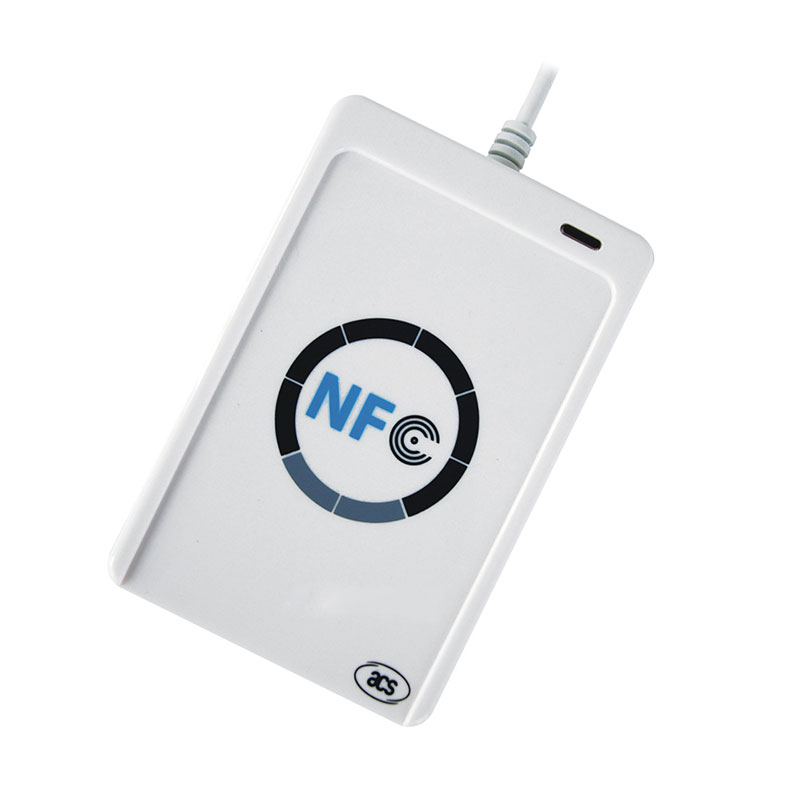

ACR122U 13.56Mhz Rfid Smart Reader NFC Card Tags Reader Writer

1.Product Introduction

◉ACR122U NFC card writer is a non-contact smart card writer based on 13.56MHz(RFID) non -contact technology.it complies with ISO/IEC18092 near field Communication (NFC)standard,support MF cards,ISO14443A&B cards,and all full NFC tags.

◉ACR122U NFC writer is ideal for personal identification and online micro-payment transactions.it can be used in a wide range of applications such as access control,electronic payments,e-ticketing(major events and public transport),toll collection and network verification,etc.

2.Product Description

Dimension	986512.8mm (LWH)
Housing	ABS
Interfacec	USB full speed
Operating Distance	Up to 50mm (depends on the tag type)
Supply Voltage	5V DC
Supply Current	200mA (Operating); 50mA (standby); 100mA (normal)
Operating Temperature	0-50 degree
Operating frequency	13.56mhz
Smart Card interface support	ISO 1443A&B,MF,Felica,NFC (ISO/IEC18092) tags
Application	E-Government,Banking&Payment,Network Security,Access Control,Transportation
Support support	Windows 98,Windows 2000,XP,Vista 7,Windows server 2003,server 2008,server 2008 R2,Windows CE,MAC,Linux Android

3.Method of installation and use

a.Connect with computer through USB interface directly.when the buzzer sounded,reader into the self-inspection.and the same time,LED turn into red means standby.

b.Open nfc card reader&writer software,put tag on the top of reader,the software will output a data(card number) of the tag. when reading the tag, LED light change from red to green.
